Description

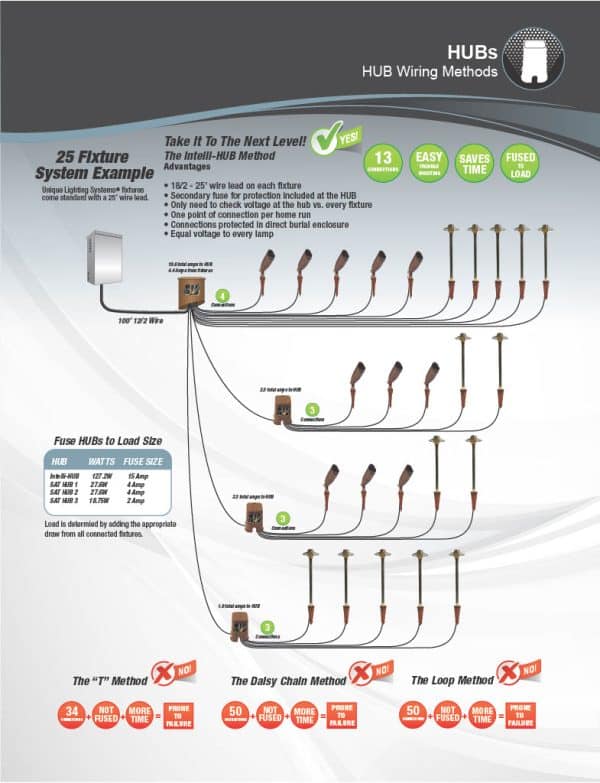

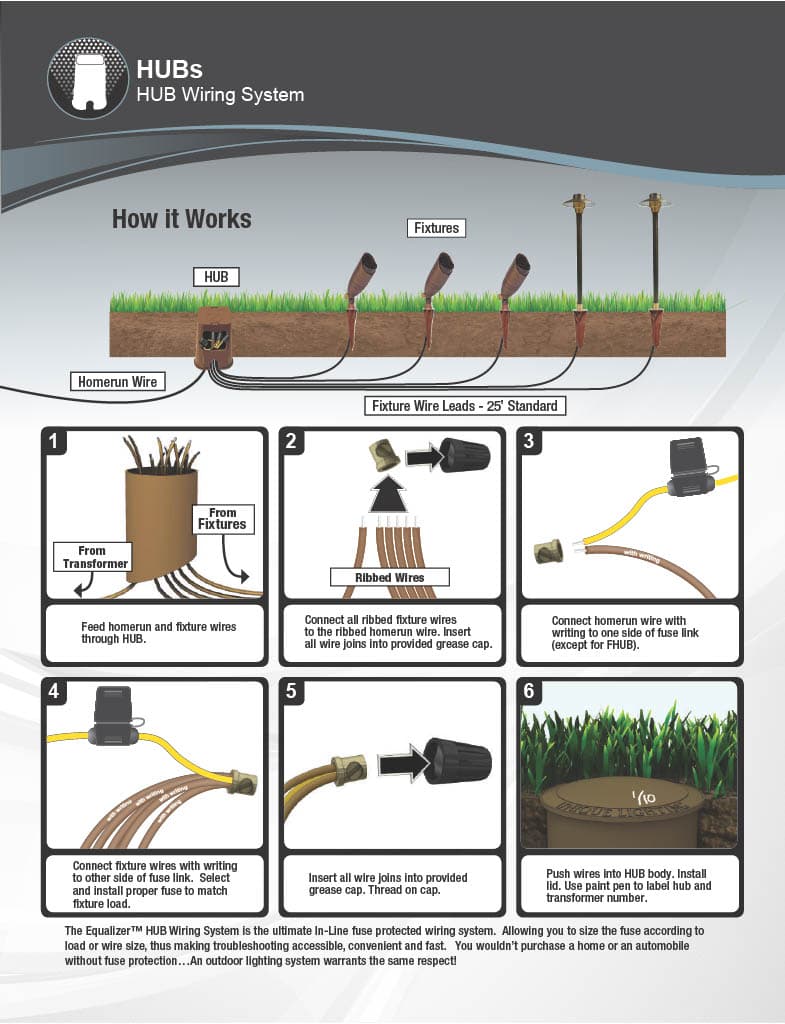

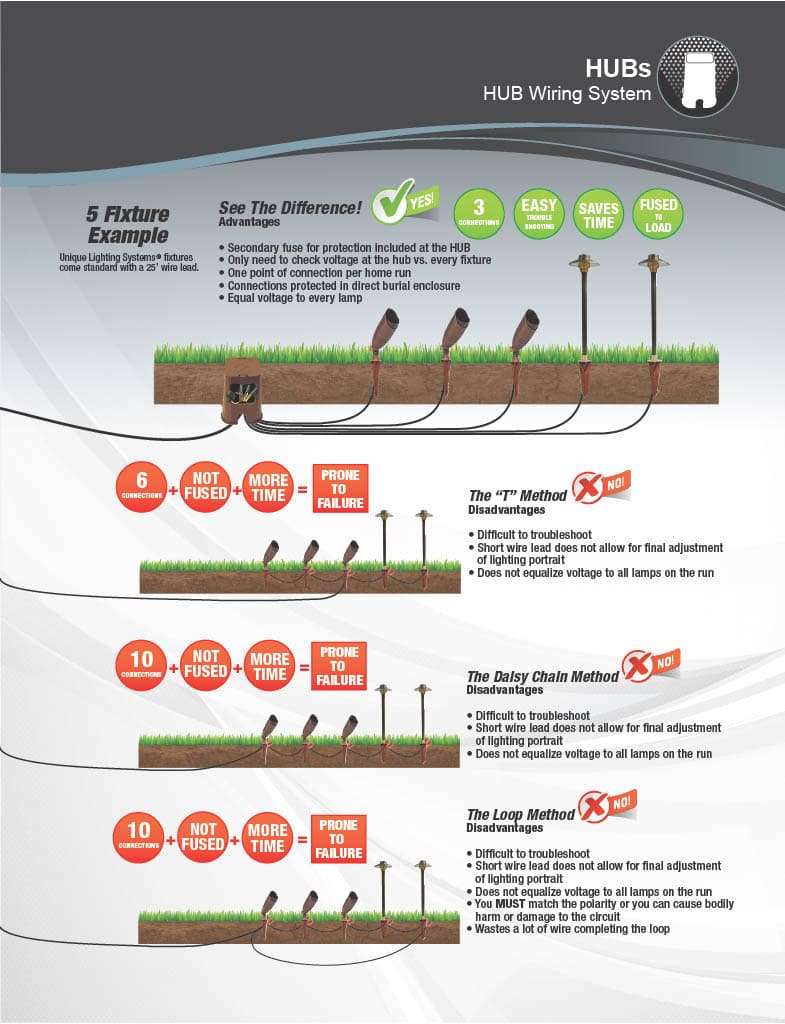

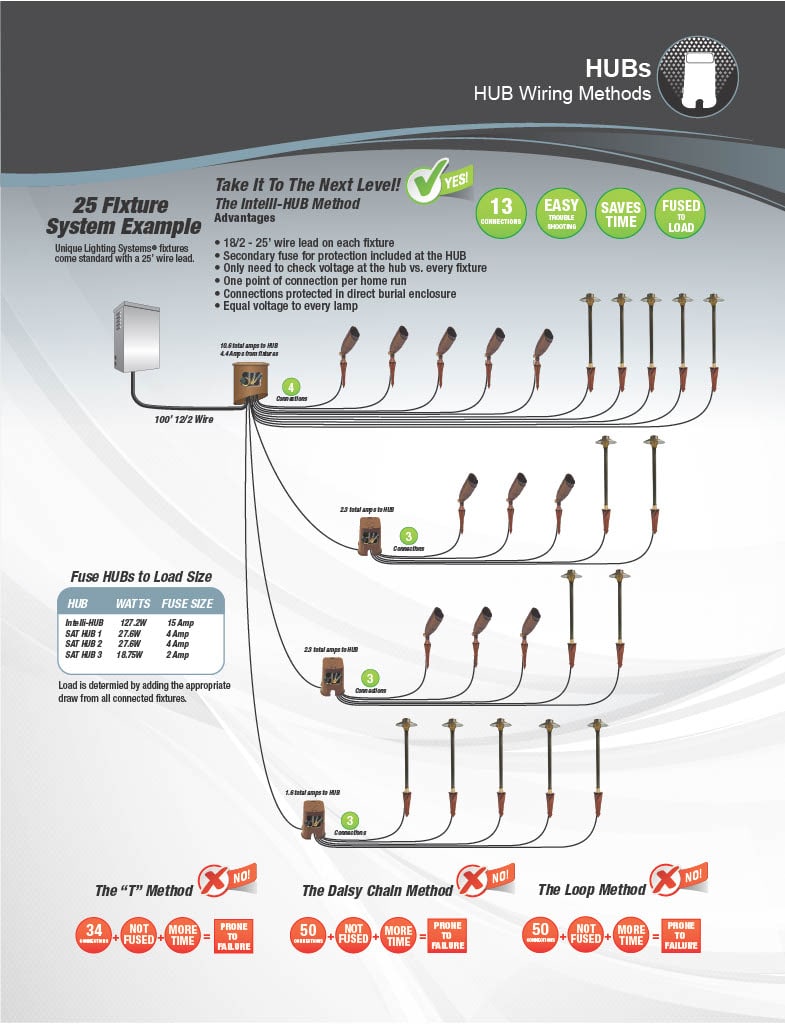

Wire connections are the weakest point of any low voltage installation and are susceptible to wicking and water infiltration. Utilizing the HUB installation method will reduce the number of connections by up to 80% versus standard wiring methods. This means less maintenance, less lamp outages and easier troubleshooting. In addition the HUB method utilizes less wire and saves money.

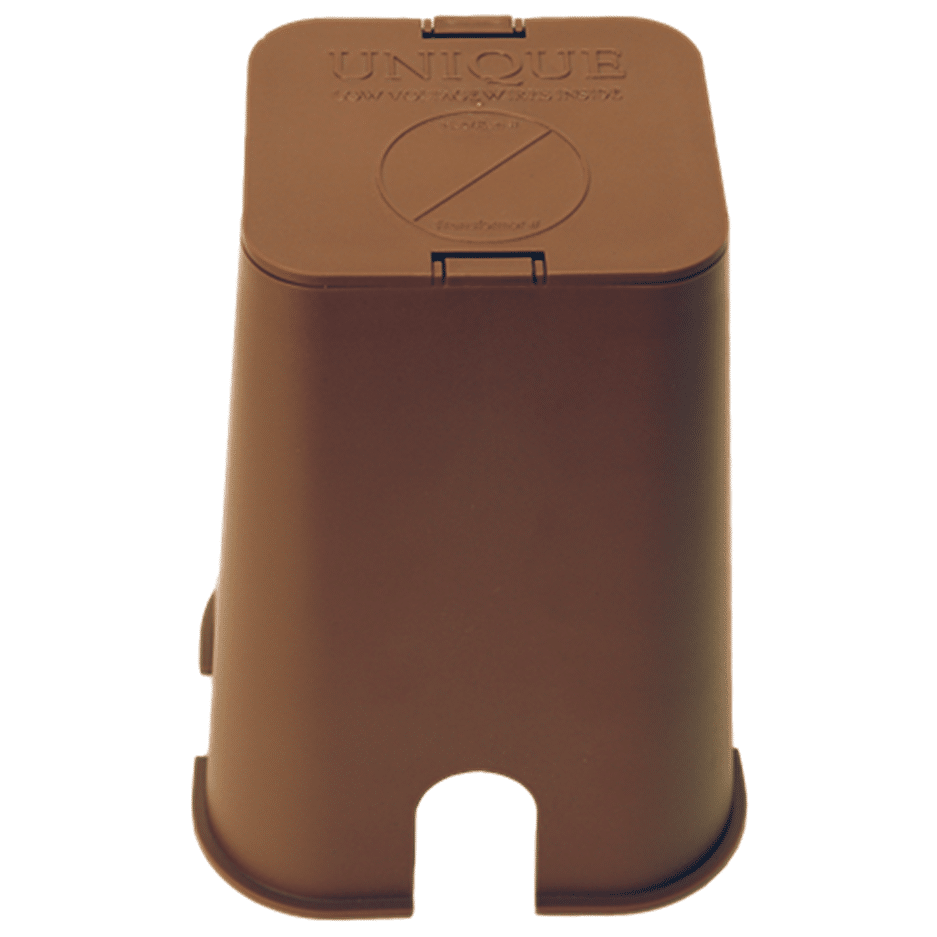

HUB Housing

– Brown ABS housing easily hides in the landscape
– Impact resistant so it holds up to the abuse of landscaping
– Snap-in lid makes access for expansion or maintenance easy
– Compact size is perfect for planters

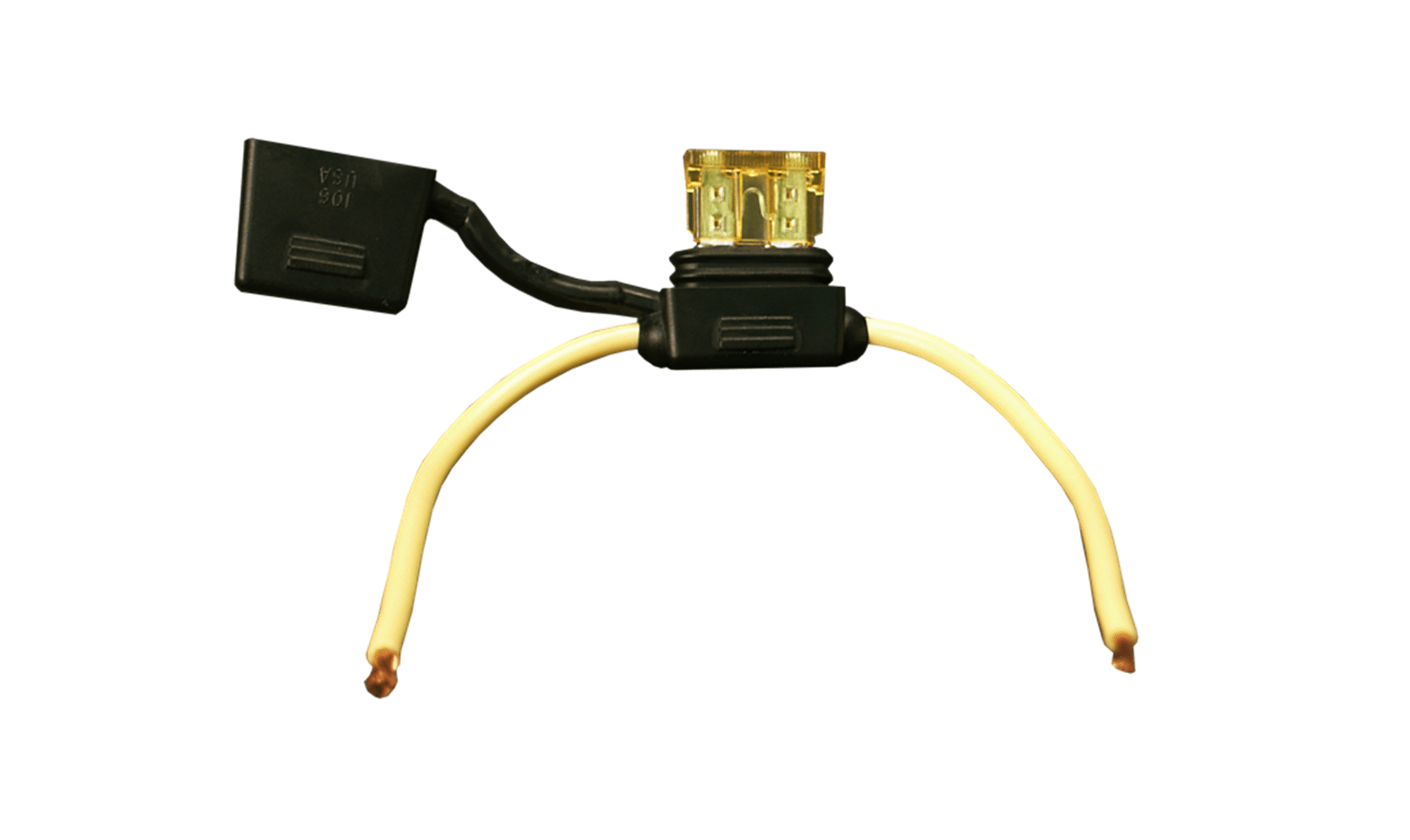

Fuse Link

– 20 Amp rated gives you the ability to fuse to the load
– Water resistant design protects in damp locations
– 8” 10AWG wire leads
– Protects wire from damage that may occur in the yard

Direct Burial Connections

– Brown ABS housing easily hides in the landscape
– Solid brass barrel lugs for lasting durable connections
– Pre-greased black wire caps to protect connections from moisture
– Solid mechanical connections ensures the life and performance of the HUB

Features
  • Replaceable 10 Amp and 20 Amp blade fuses included.
  • 3 brass lug nuts and grease-filled caps included.
  • Limited lifetime warranty
  • Brown ABS Construction
  • Protect in-line connections from moisture to minimize wicking and corrosion

Unique Satellite Hub Wiring Kit
